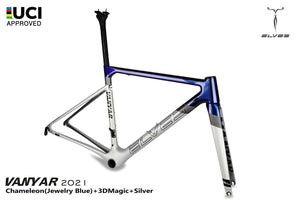

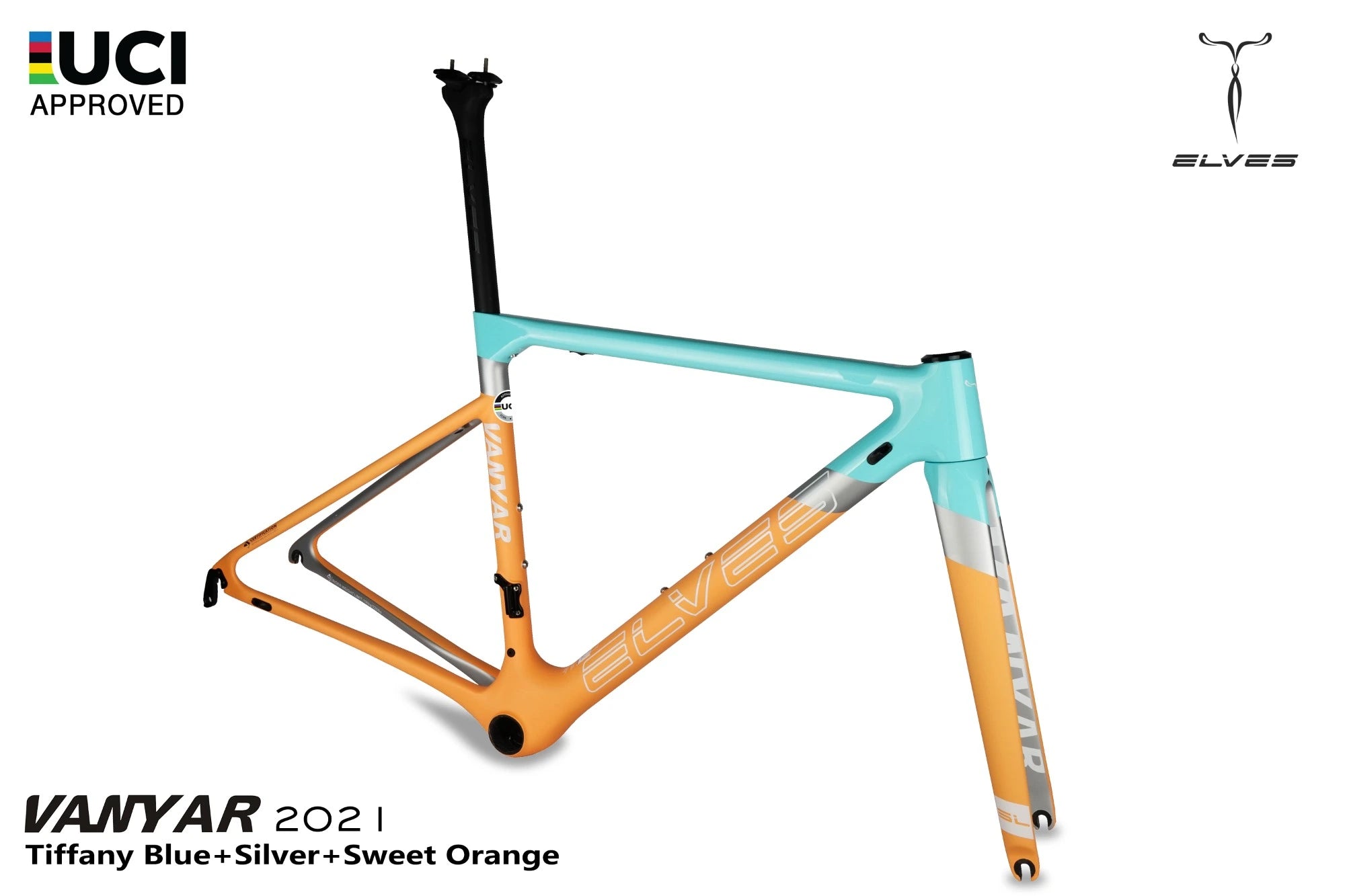

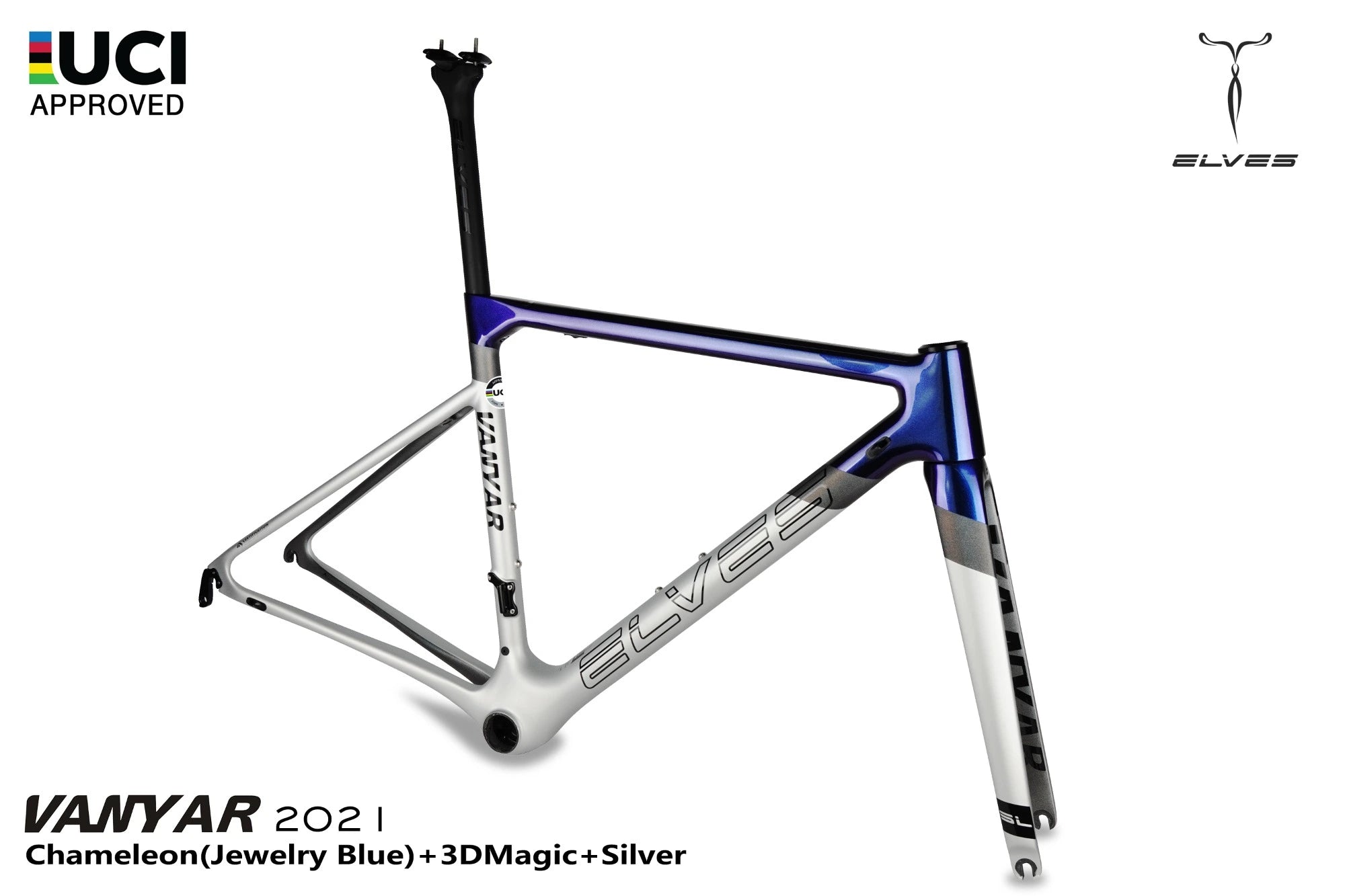

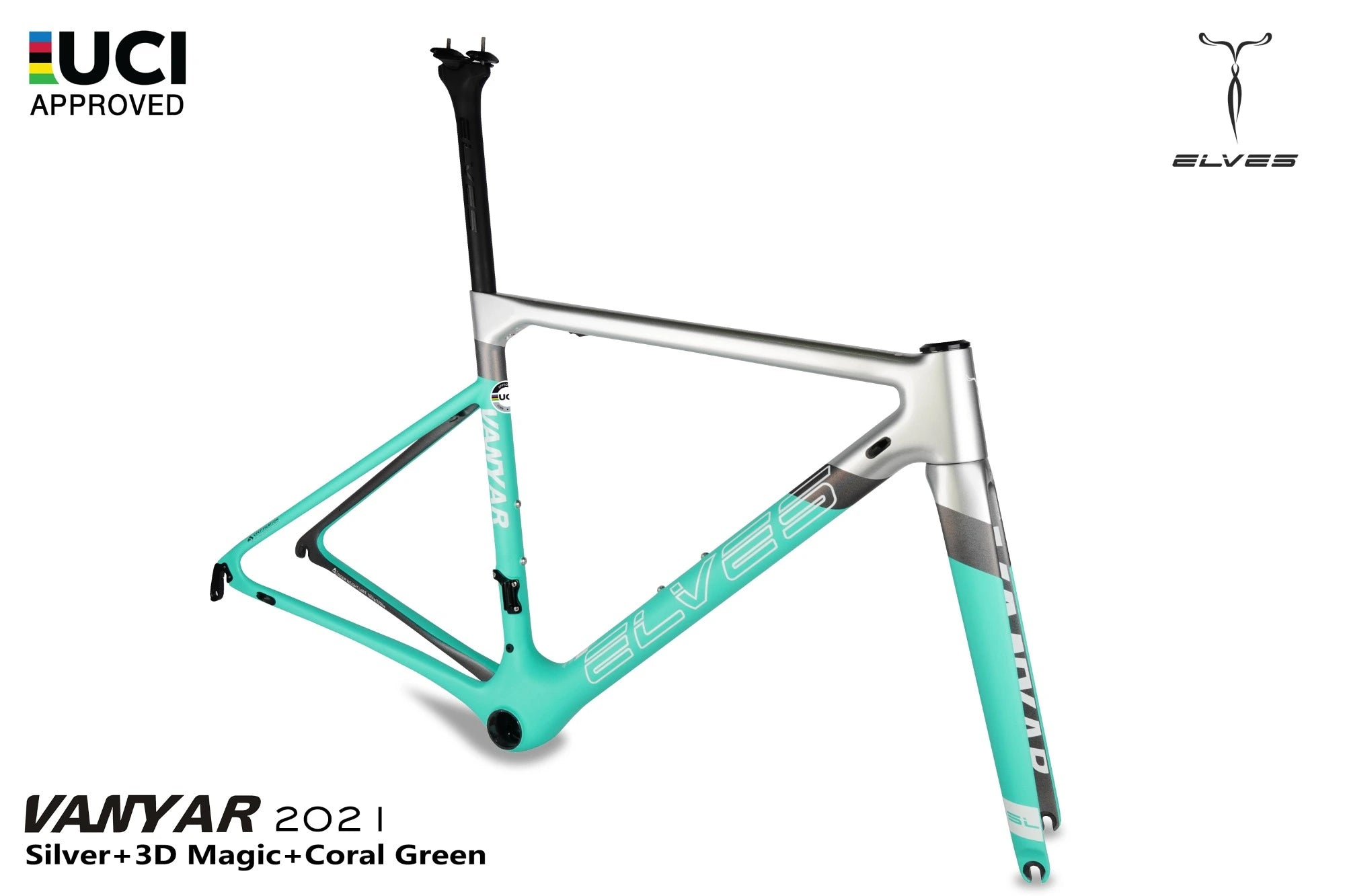

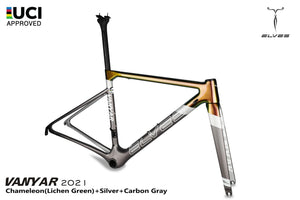

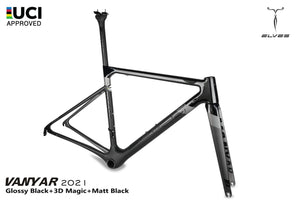

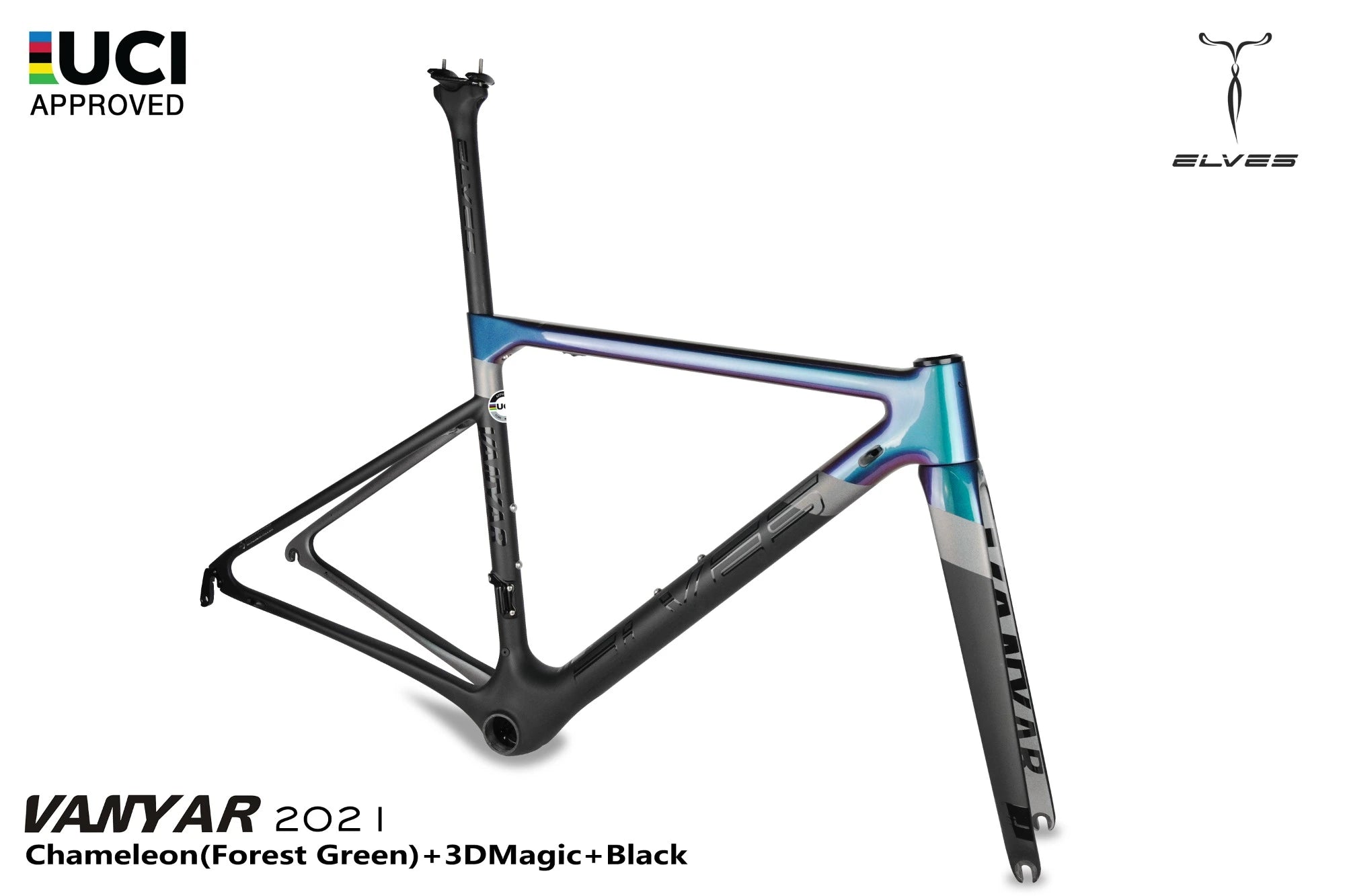

Elves Vanyar UCI Road Frame 2021

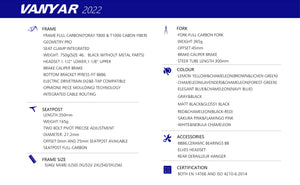

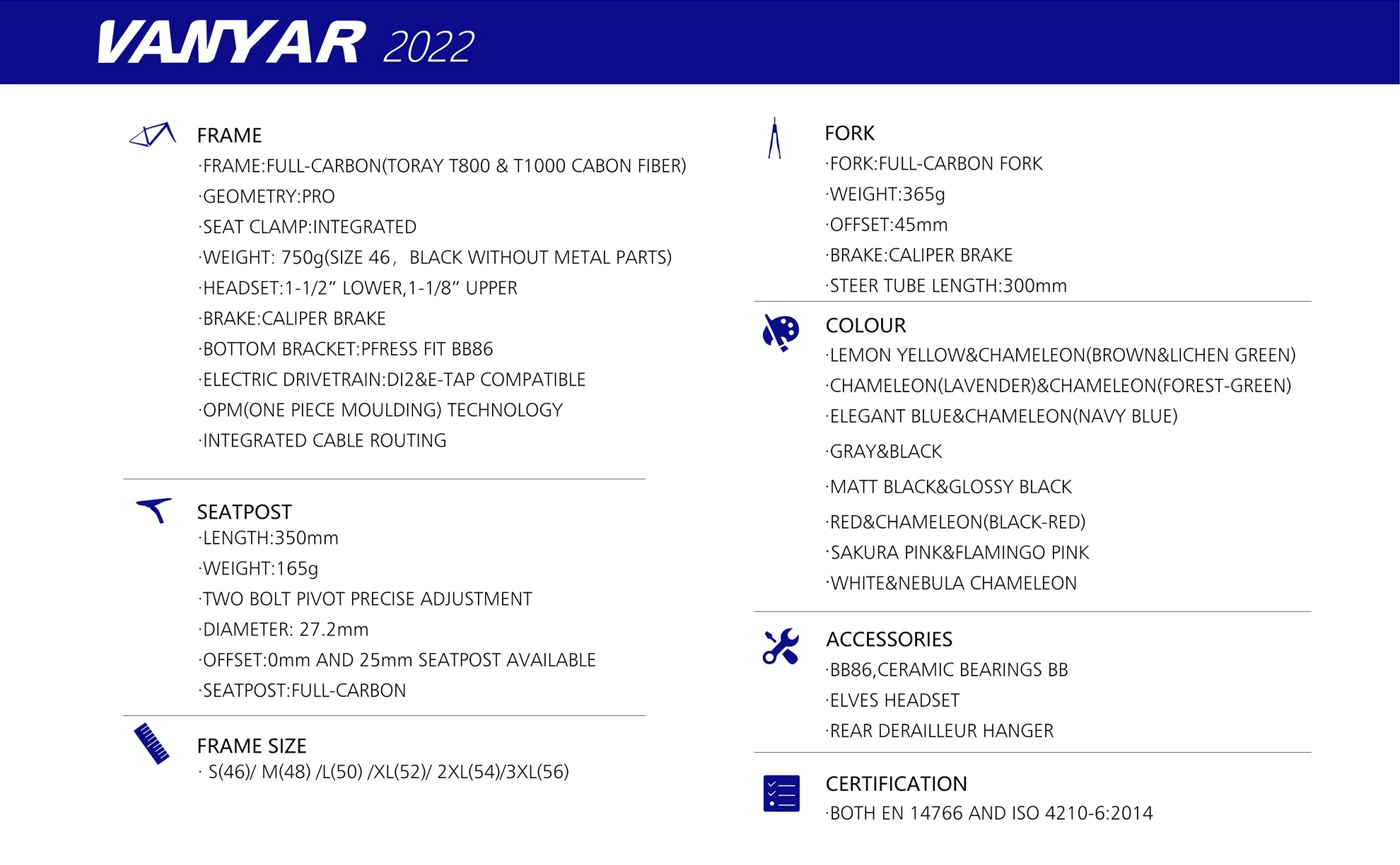

FRAME
ELVES VANYAR 2021
FULL-CARBON(TOARY T800 & T1000 CABON FIBER)

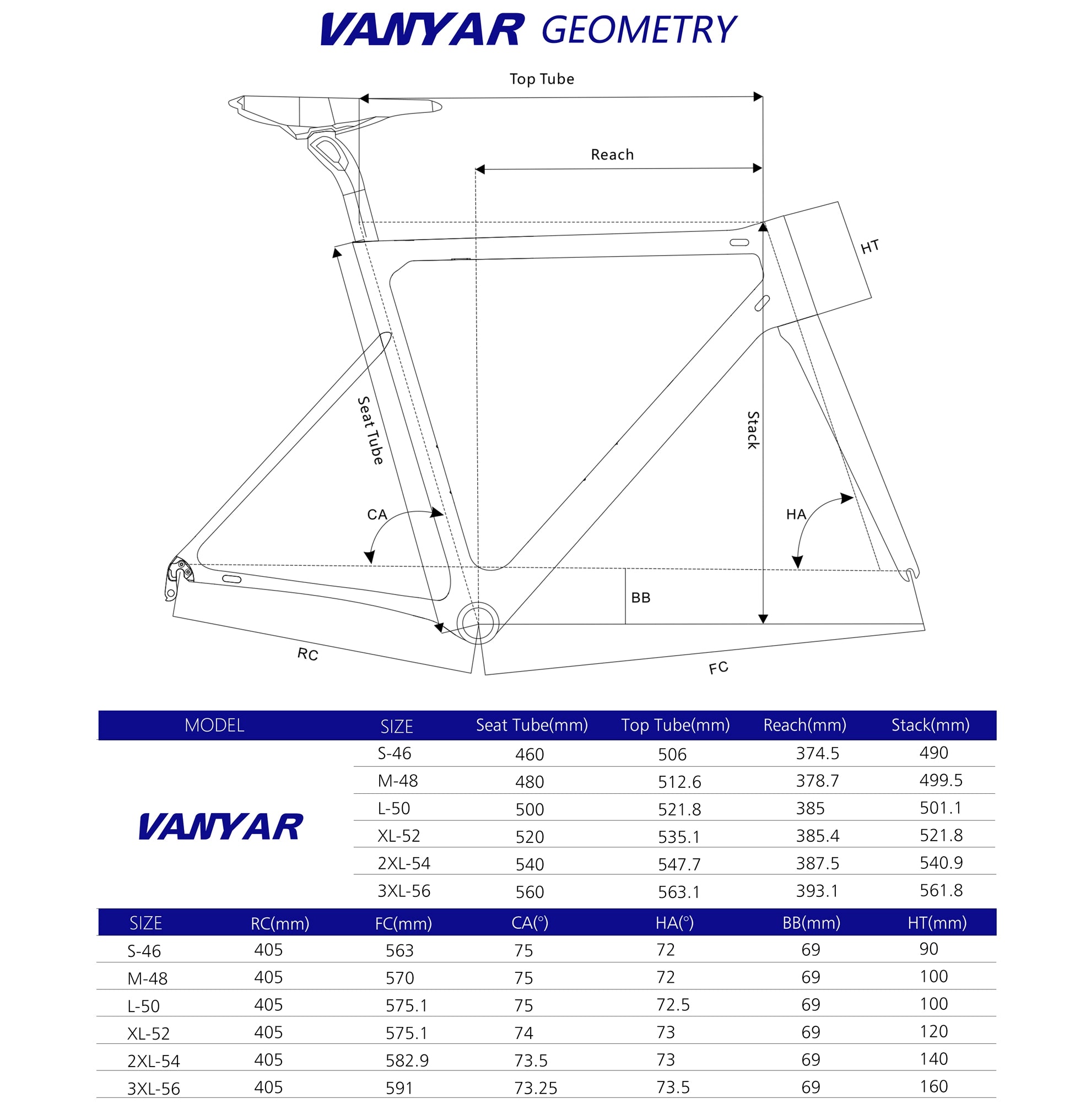

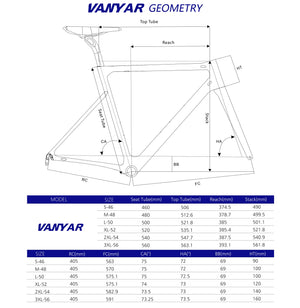

GEOMETRY:PRO
SEAT CLAMP:INTEGRATED
WEIGHT: 750g(SIZE 46，UNPAINTED FRAME WITHOUT METAL PARTS)
BRAKE:CALIPER BRAKE(C BRAKE)
BOTTOM BRACKET:PRESS FIT BB86
BOTTOM SHELL WIDTH:86.5mm
BOTTOM SHELL ID:41mm
ELECTRIC DRIVETRAIN: Di2&E-TAP COMPATIBLE
OPM(ONE PIECE MOLDING) TECHNOLOGY
INTEGRATED CABLE ROUTING
MAX TYRE SIZE: 700CX28C

SEAT POST
ELVES SP02 SEATPOST
LENGTH:350mm
WEIGHT:165g
TWO BOLT PIVOT PRECISE ADJUSTMENT
DIAMETER: 27.2mm
OFFSET:0mm AND 25mm SEATPOST AVAILABLE
SEATPOST:FULL-CARBON

FORK
ELVES VANYAR FORK
FORK:FULL-CARBON FORK
WEIGHT: 365g
OFFSET: 45mm
BRAKE:CALIPER BRAKE(C BRAKE)
STEER TUBE LENGTH: 300mm

ACCESSORIES
PRESS FIT BB86(CERAMIC BEARINGS)
INTEGRATED HEADSET FOR TAPERED 1 1/2" - 1 1/8" STEERER
HEADSET BEARING SPEC: UPPER(42mmX6.5mmX45°)/LOWER(52mmX7mmX45°)
SPARE REAR DERAILLEUR HANGER X1

TORQUE VALUES
SADDLE RAIL BOLTS:12Nm
INTEGRATED SEATCLAMP:10-12Nm
STEM (STEERER):6Nm
STEM (HANDLEBAR):6Nm
FRONT DERAILLEUR HANGER:3Nm
REAR DERAILLEUR HANGER:2.5Nm
WATER BOTTLE CAGE BOLTS:3Nm
