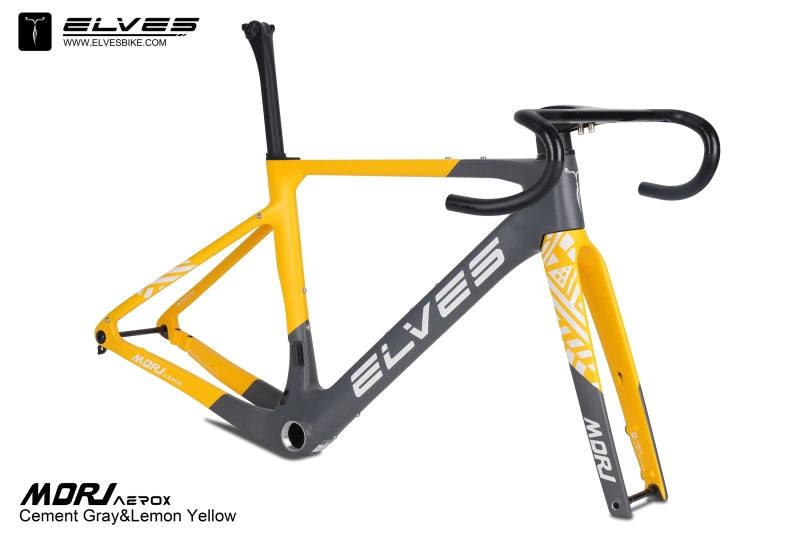

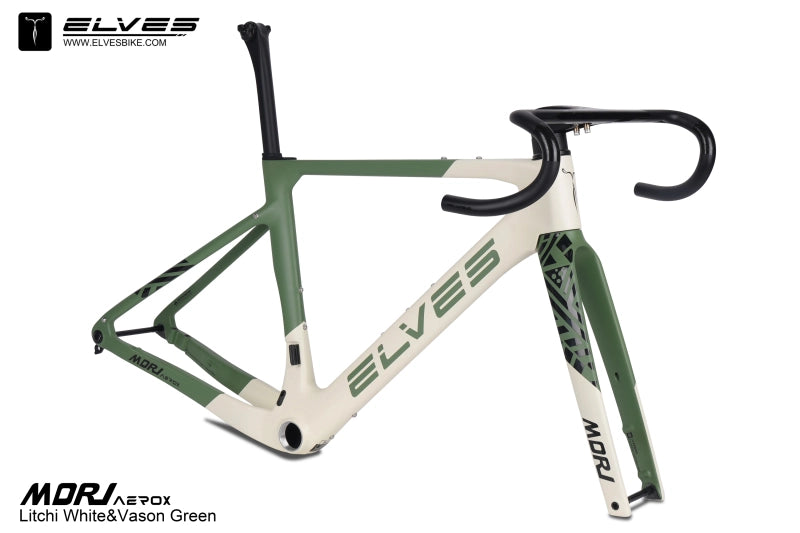

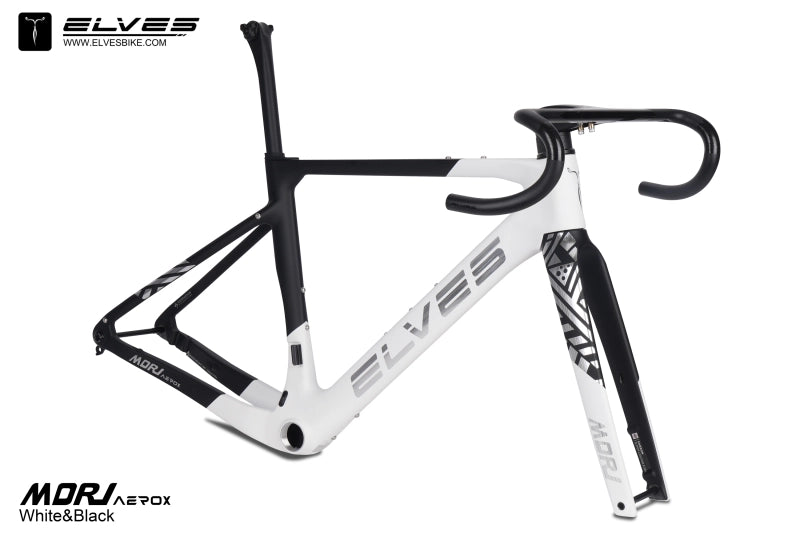

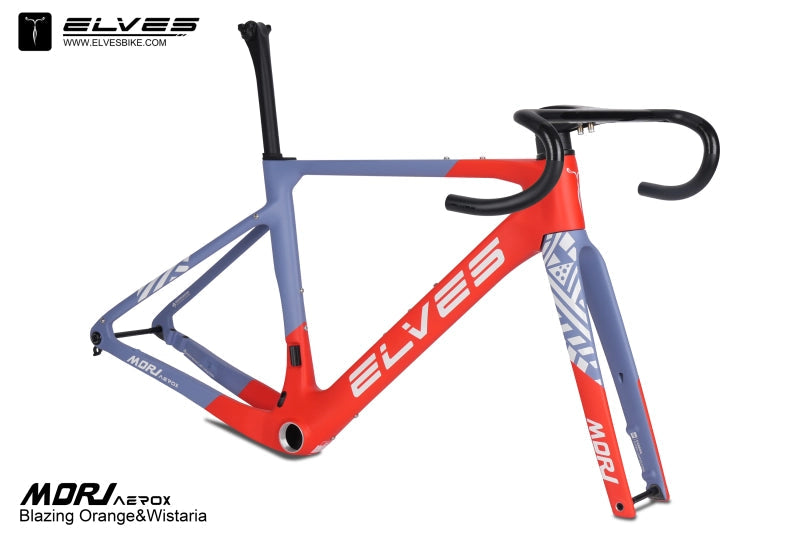

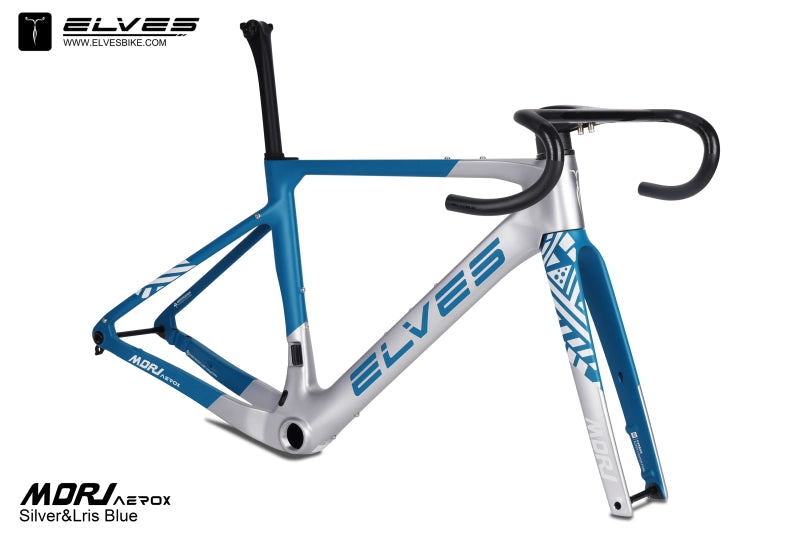

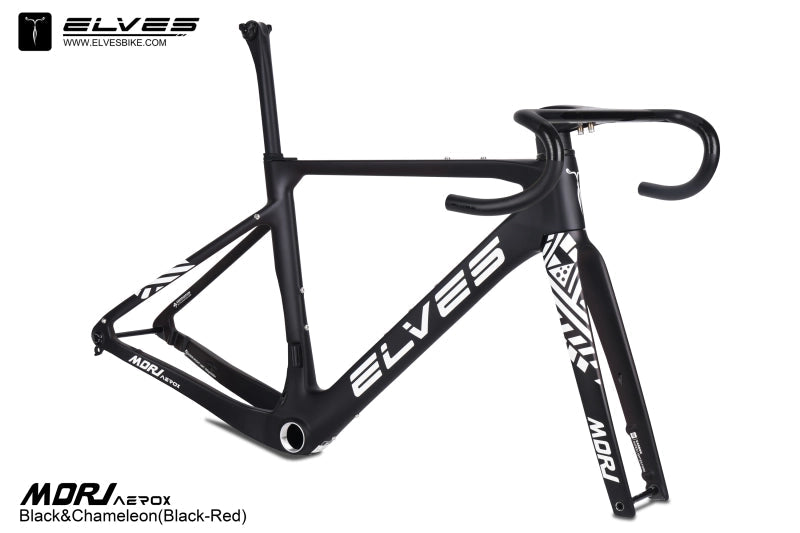

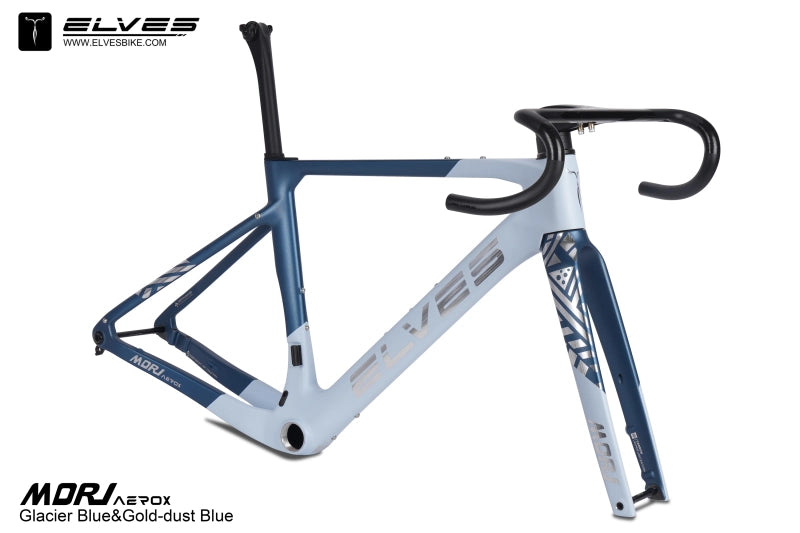

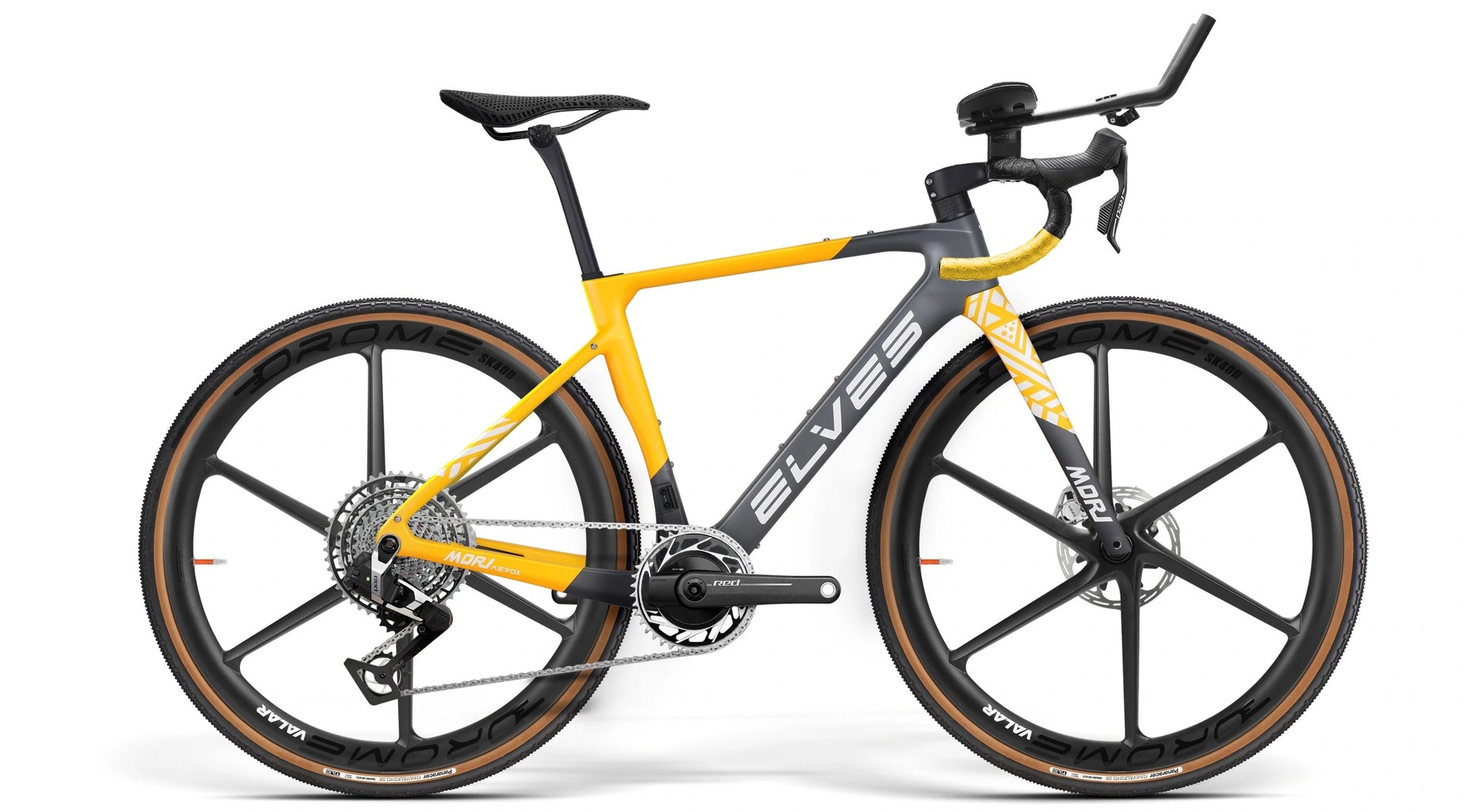

Elves Mori Aerox Gravel Disc Frame

FRAME
Frame: ELVES MORI
Material: Full-Carbon (Toray T800 + T1000)
Geometry: Pro
Seat Clamp: Integrated
Headset Bearing: 1-1/2" × 8mm lower, 1-1/2" × 7mm upper
Brake: Flat mount
Bottom Bracket: T47 threaded bottom
Electric Drivetrain Compatibility: Di2 & E-Tap
Manufacturing Technique: EPS + Latex bladder moulding
Cable Routing: Fully integrated
Thru Axle Dimension: M12 × 1.5 × 170mm (142mm)
Max Tyre Size: 700C × 45C / 605B × 50C
Max Rotor Size: Up to 160mm

FORK
Material: Full-Carbon
Offset: 45mm
Brake: Flat mount
Steer Tube Length: 300mm
Thru Axle Dimension: M12 × 1.5 × 121mm
Max Rotor Size: Up to 160mm

SEAT POST
Length: 350mm and 400mm
Adjustment: Single bolt pivot precise adjustments
Material: Full-Carbon
Saddle Clamp: 7 × 7mm AL rail clamp and 7 × 10mm carbon rail clamp
Offset Options: 12mm and 25mm

ACCESSORIES
Bottom Bracket Options: T47-24R (Shimano) / T47-29R (SRAM DUB) / T47-30R (Rotor) available
Elves Headset
Integrated Handlebar Spacers (3 pcs × 10mm)
