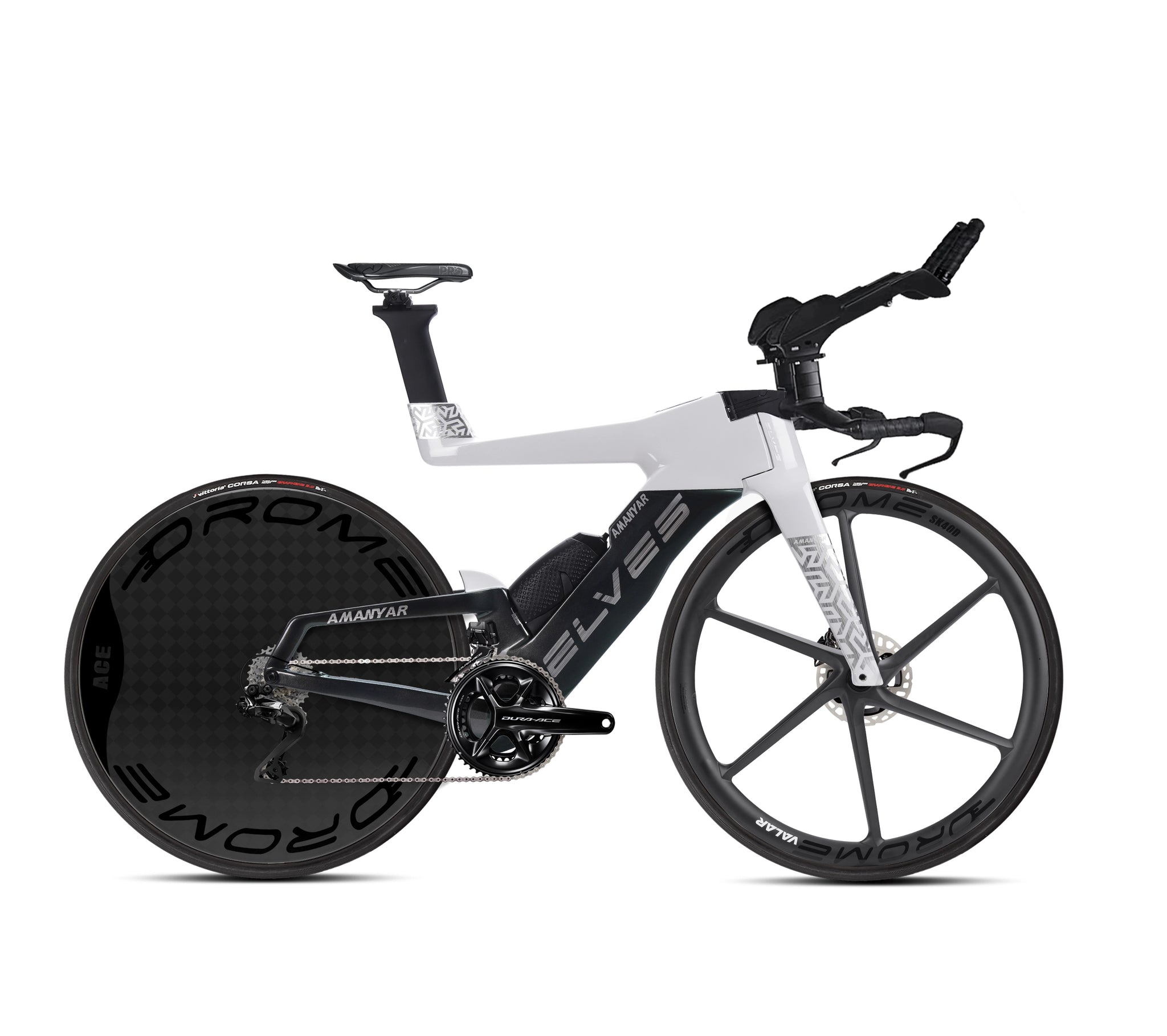

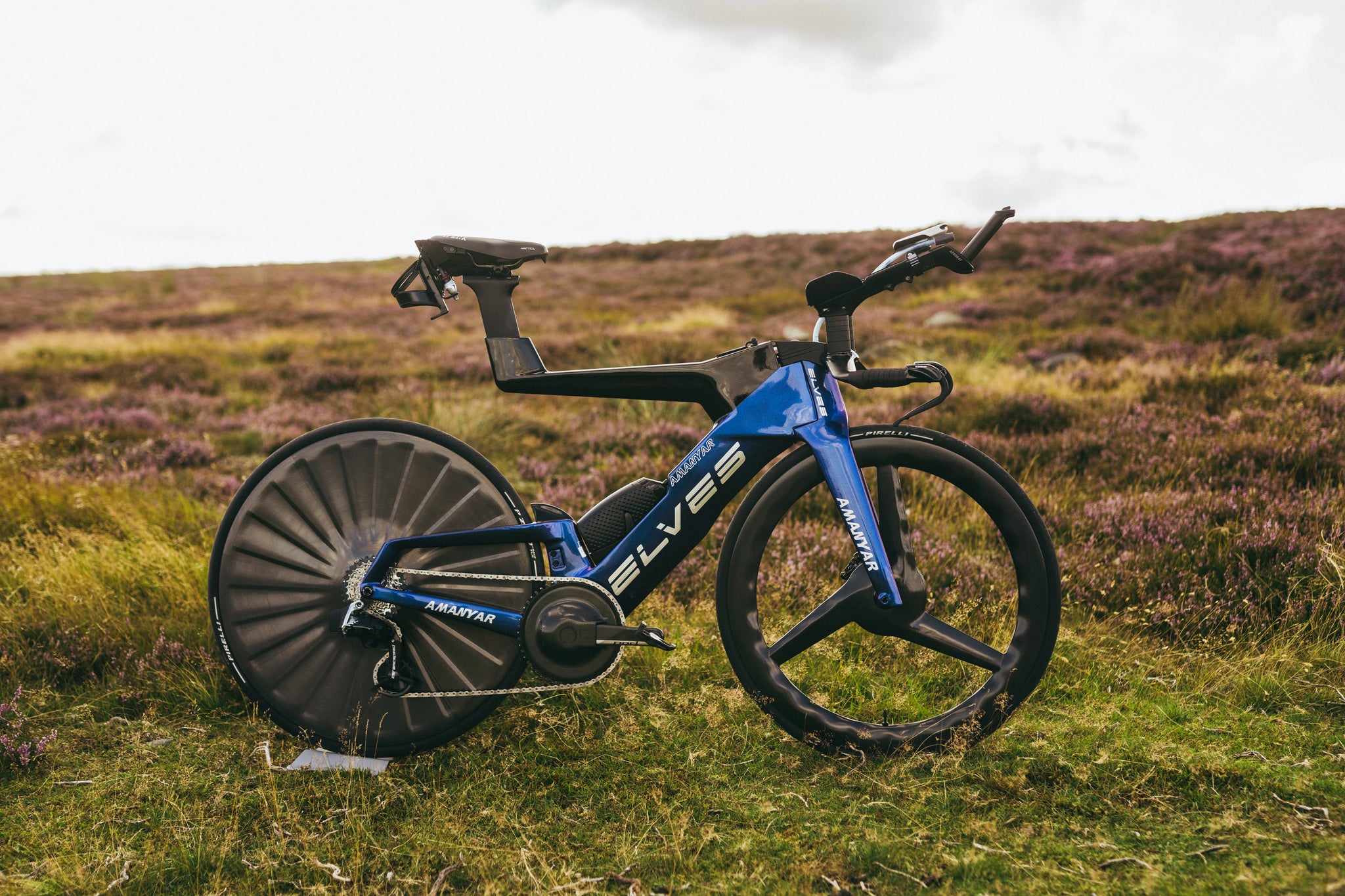

Elves Amanyar 1.0 Triathalon Disc Frame

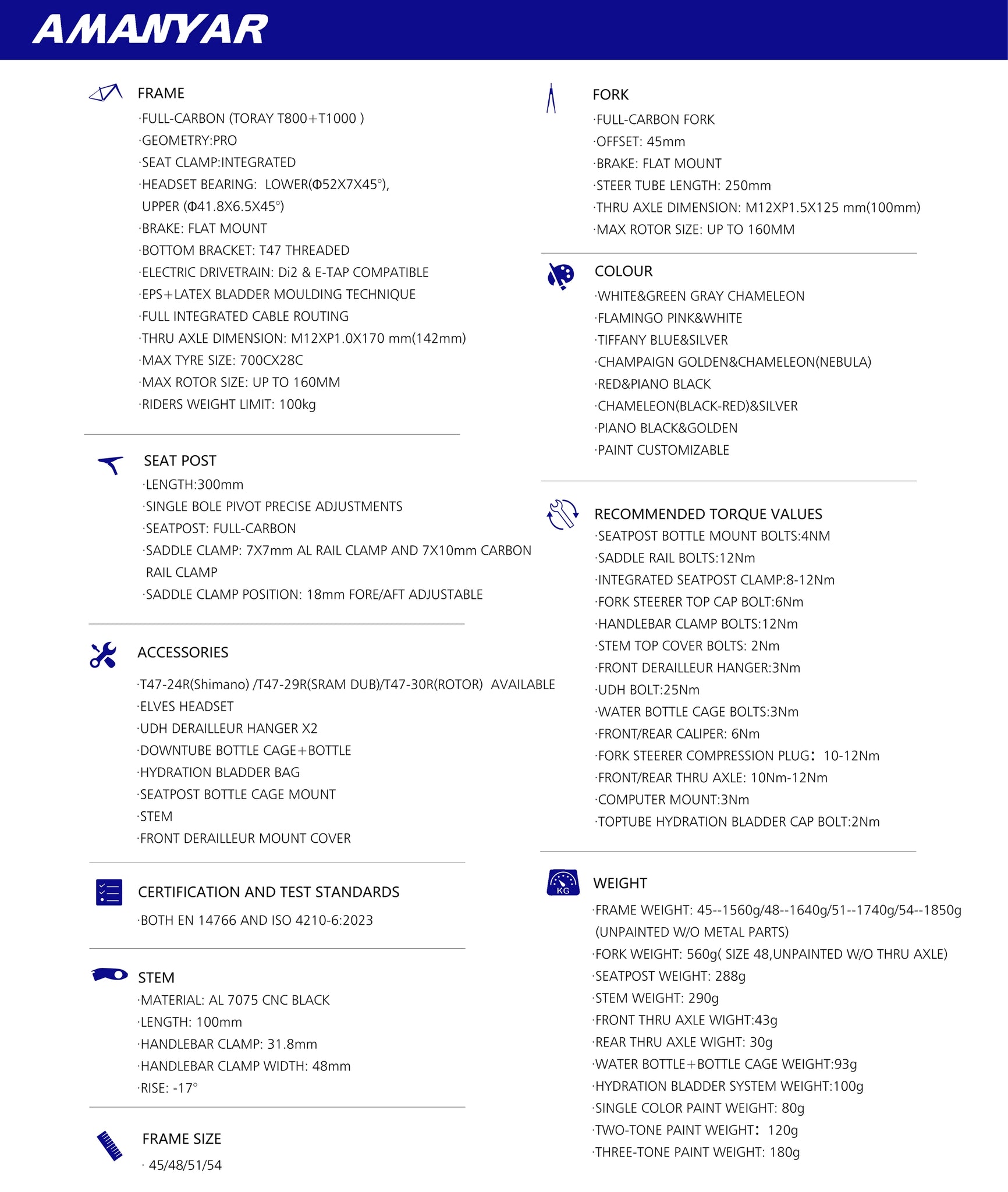

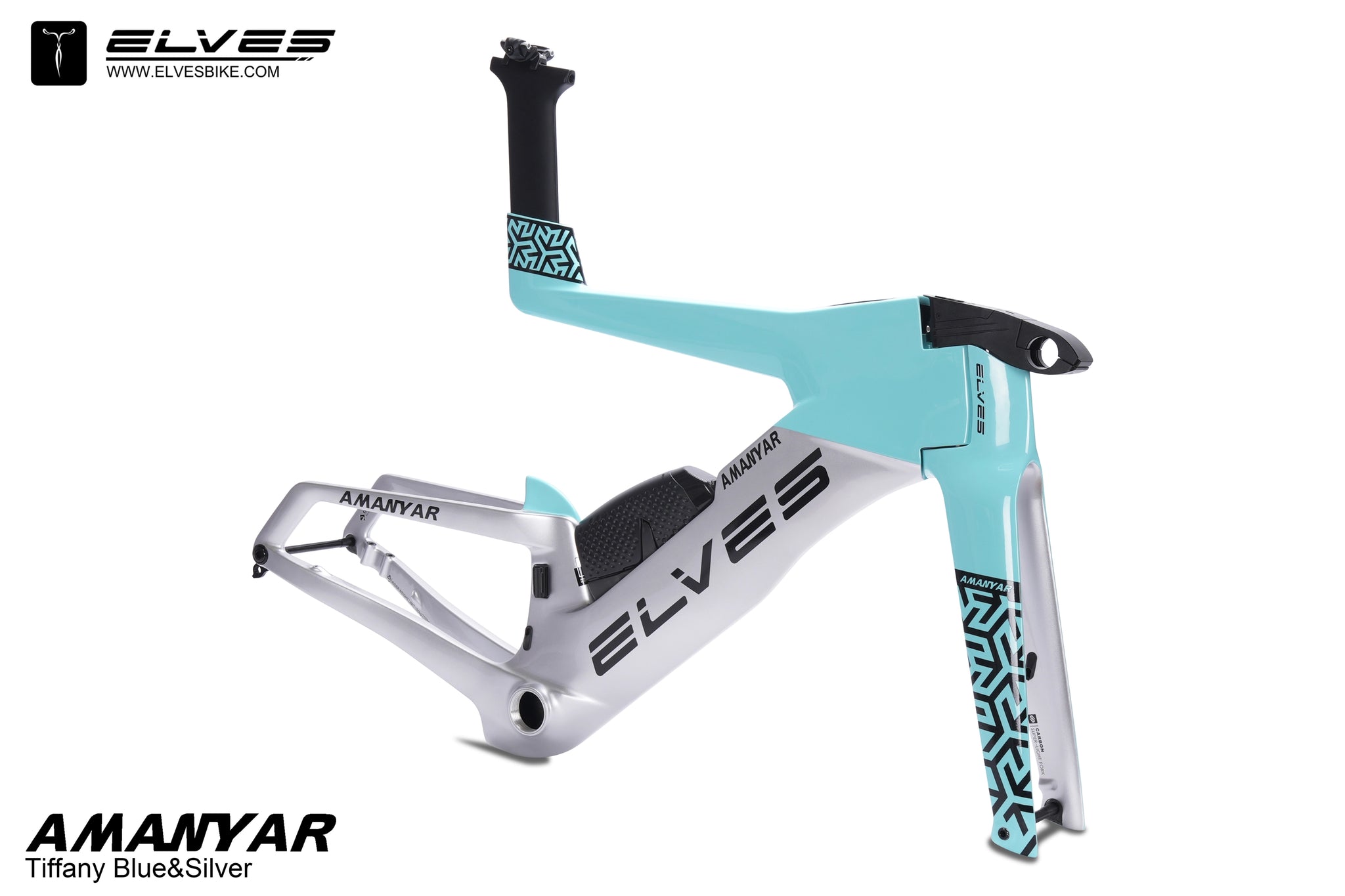

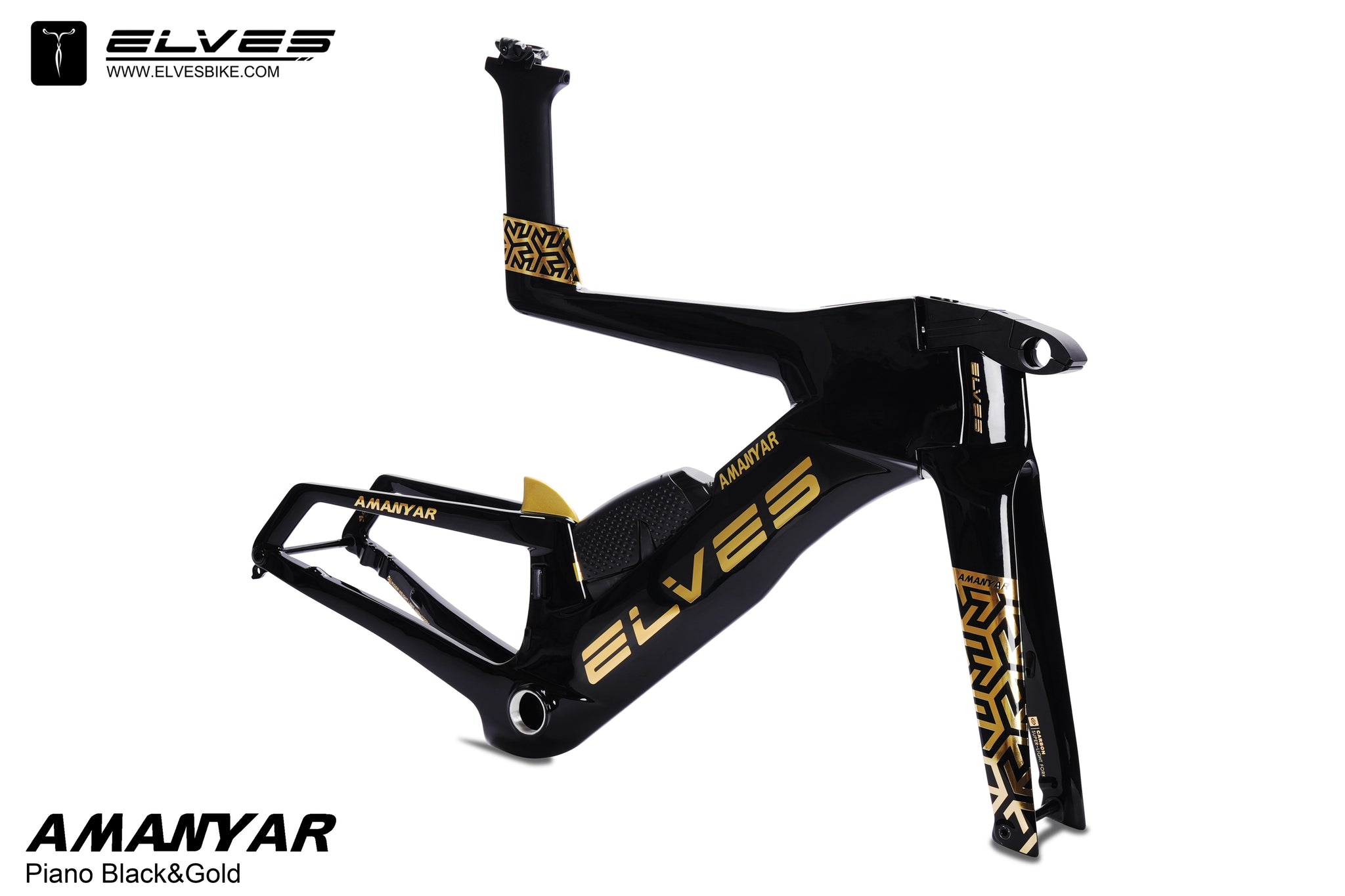

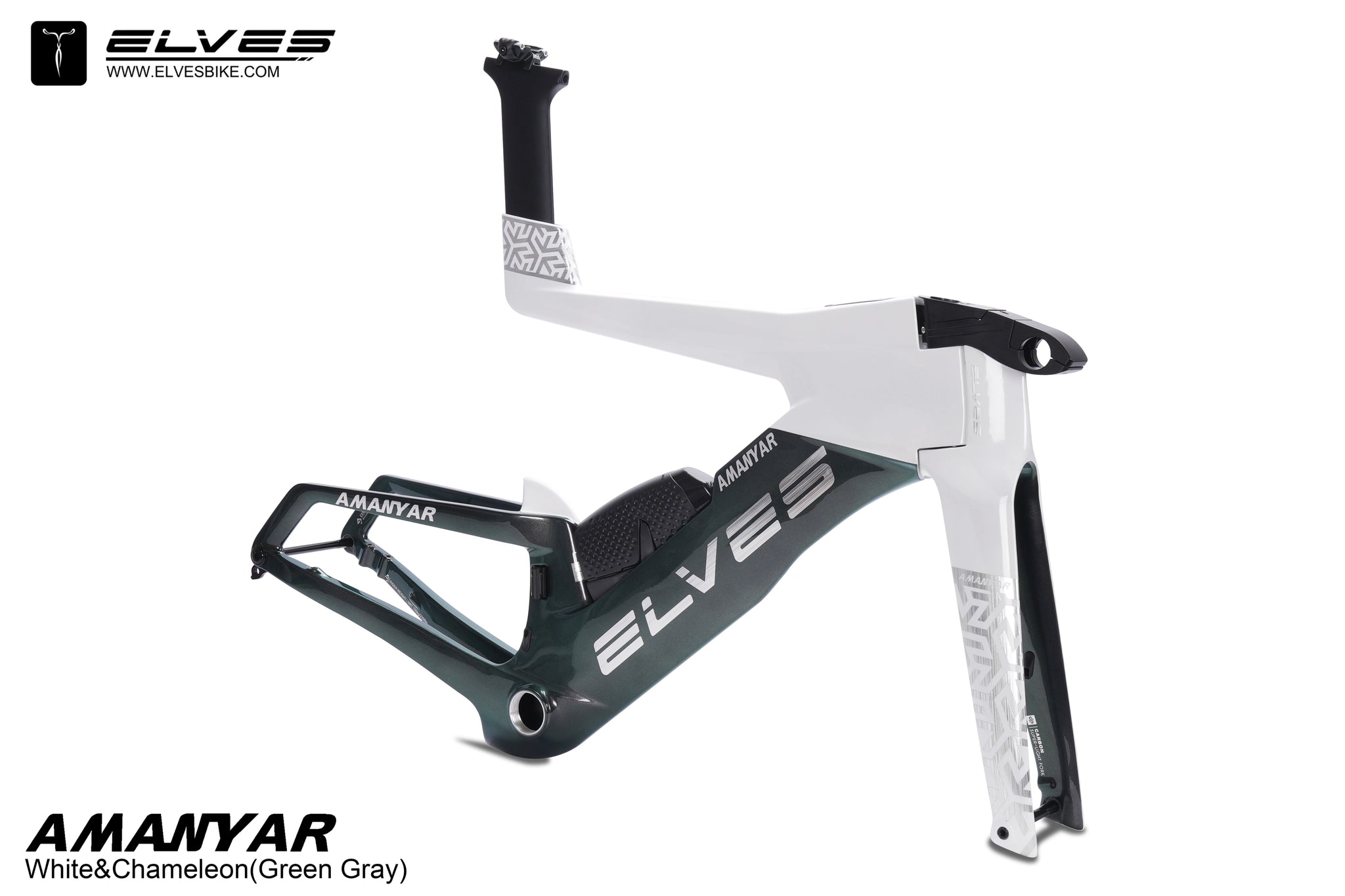

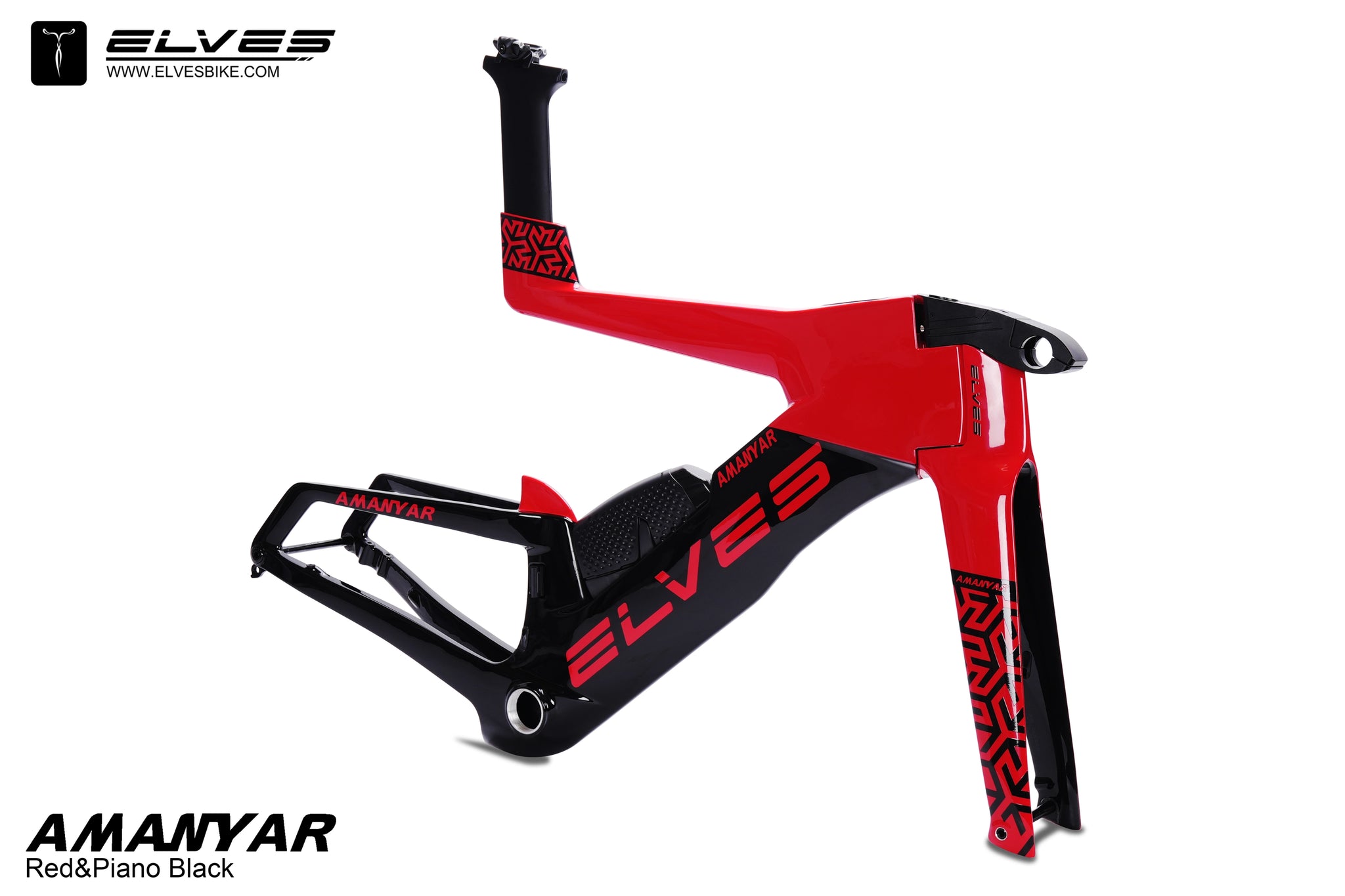

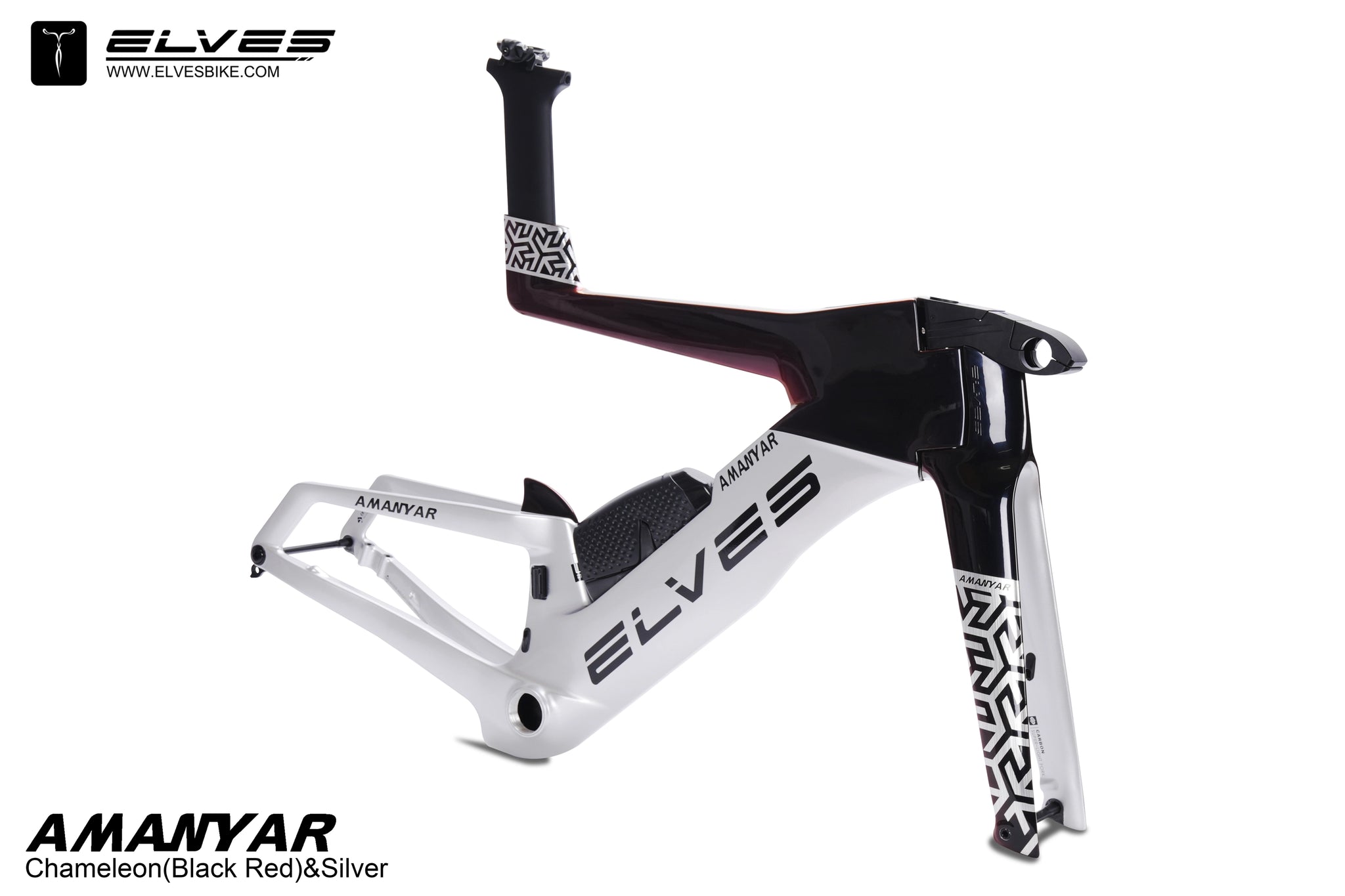

FRAME
·FULL-CARBON (TORAY T800+T1000 )

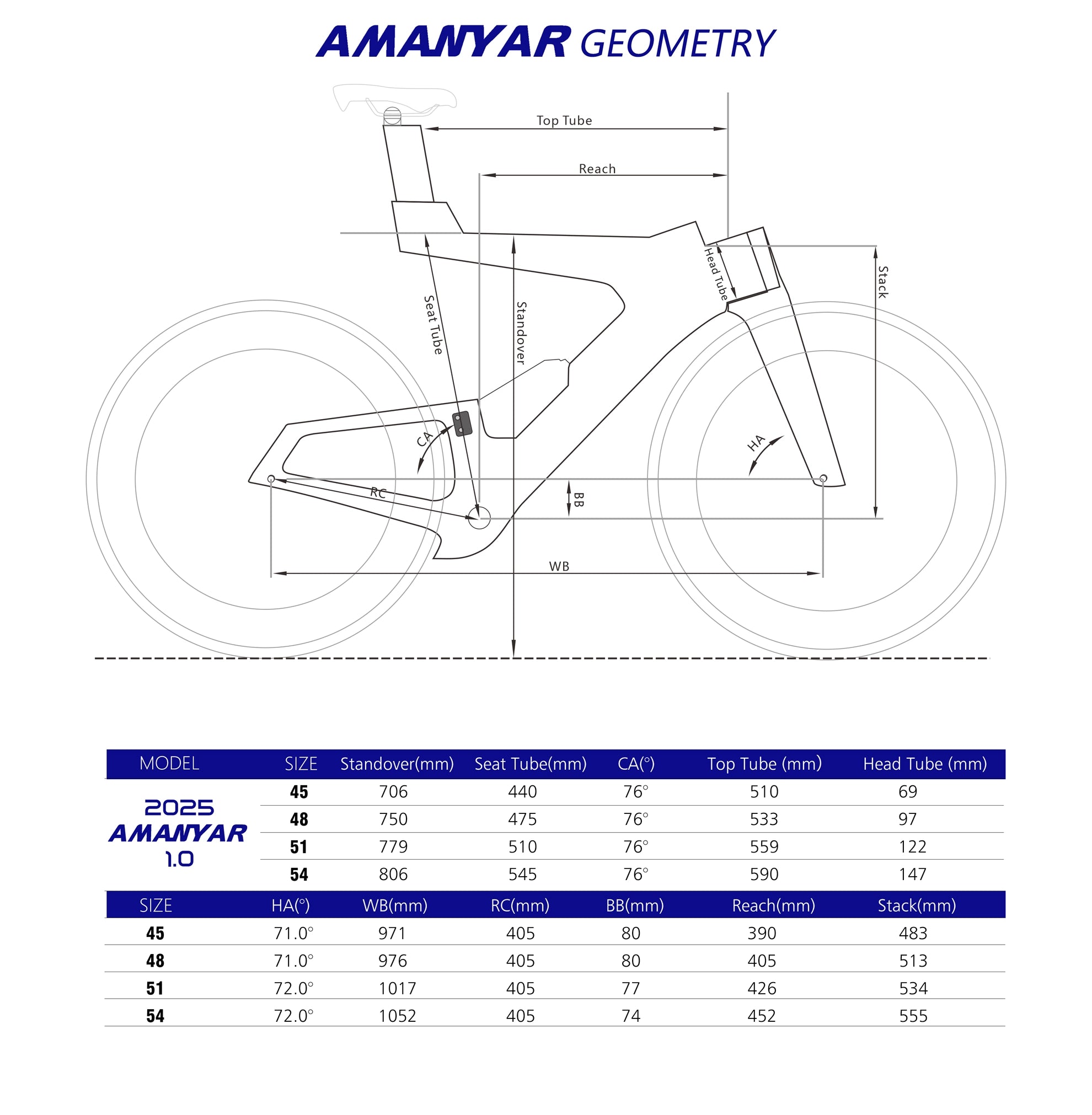

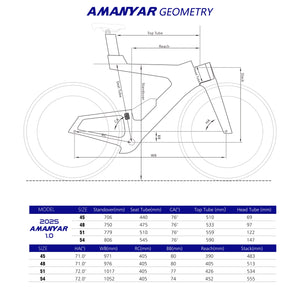

·GEOMETRY:PRO
·SEAT CLAMP:INTEGRATED
·HEADSET BEARING: LOWER(Φ52X7X45°),
UPPER (Φ41.8X6.5X45°)
·BRAKE: FLAT MOUNT
·BOTTOM BRACKET: T47 THREADED
·ELECTRIC DRIVETRAIN: Di2 & E-TAP COMPATIBLE
·EPS+LATEX BLADDER MOULDING TECHNIQUE
·FULL INTEGRATED CABLE ROUTING
·THRU AXLE DIMENSION: M12XP1.0X170 mm(142mm)
·MAX TYRE SIZE: 700CX28C
·MAX ROTOR SIZE: UP TO 160MM
·RIDERS WEIGHT LIMIT: 100kg
FORK
·FULL-CARBON FORK
·OFFSET: 45mm
·BRAKE: FLAT MOUNT
·STEER TUBE LENGTH: 250mm
·THRU AXLE DIMENSION: M12XP1.5X125 mm(100mm)
·MAX ROTOR SIZE: UP TO 160MM
SEATPOST
·LENGTH:300mm
·SINGLE BOLE PIVOT PRECISE ADJUSTMENTS
·SEATPOST: FULL-CARBON
·SADDLE CLAMP: 7X7mm AL RAIL CLAMP AND 7X10mm CARBON
RAIL CLAMP
·SADDLE CLAMP POSITION: 18mm FORE/AFT ADJUSTABLE
STEM
·MATERIAL: AL 7075 CNC BLACK
·LENGTH: 100mm
·HANDLEBAR CLAMP: 31.8mm·HANDLEBAR CLAMP WIDTH: 48mm
·STEM INTERNAL DIMENSIONS: 60mmx40mmX25mm(Fit for SARM eTap AXS Blipbox)
·RISE: -17°
WEIGHT
·FRAME WEIGHT: 45--1560g/48--1640g/51--1740g/54--1850g(UNPAINTED W/O METAL PARTS)
·FORK WEIGHT: 560g( SIZE 48,UNPAINTED W/O THRU AXLE)
·SEATPOST WEIGHT: 288g
·STEM WEIGHT: 290g
·FRONT THRU AXLE WIGHT:43g
·REAR THRU AXLE WIGHT: 30g
·WATER BOTTLE+BOTTLE CAGE WEIGHT:93g
·HYDRATION BLADDER SYSTEM WEIGHT:100g
·Single color paint weight: 80g
·Two-tone paint weight：120g
·Three-tone paint weight: 180g
ACCESSORIES
·T47-24R(Shimano) /T47-29R(SRAM DUB)/T47-30R(ROTOR)AVAILABLE
·ELVES HEADSET
·UDH DERAILLEUR HANGER X2
·DOWNTUBE BOTTLE CAGE+BOTTLE
·HYDRATION BLADDER BAG
·SEATPOST BOTTLE CAGE MOUNT
·STEM
·FRONT DERAILLEUR MOUNT COVER
TORQUE VALUES
·SEATPOST BOTTLE MOUNT BOLTS:4Nm
·SADDLE RAIL BOLTS:12Nm
·INTEGRATED SEATPOST CLAMP:8-12Nm
·FORK STEERER TOP CAP BOLT:6Nm
·HANDLEBAR CLAMP BOLTS:12Nm
·STEM TOP COVER BOLTS: 2Nm
·FRONT DERAILLEUR HANGER:3Nm
·UDH BOLT:25Nm
·WATER BOTTLE CAGE BOLTS:3Nm
·FRONT/REAR CALIPER: 6Nm
·FORK STEERER COMPRESSION PLUG：10-12Nm
·FRONT/REAR THRU AXLE: 10Nm-12Nm
·COMPUTER MOUNT:3Nm
·TOPTUBE HYDRATION BLADDER CAP BOLT:2Nm
